Laguna Revo 1216 Lathe and Accessories

  • Sale
  • Regular price $150.00


*For shipping a lathe  Please call or email to order.  480 389 4187

Please call to place order and reserve your place in line.

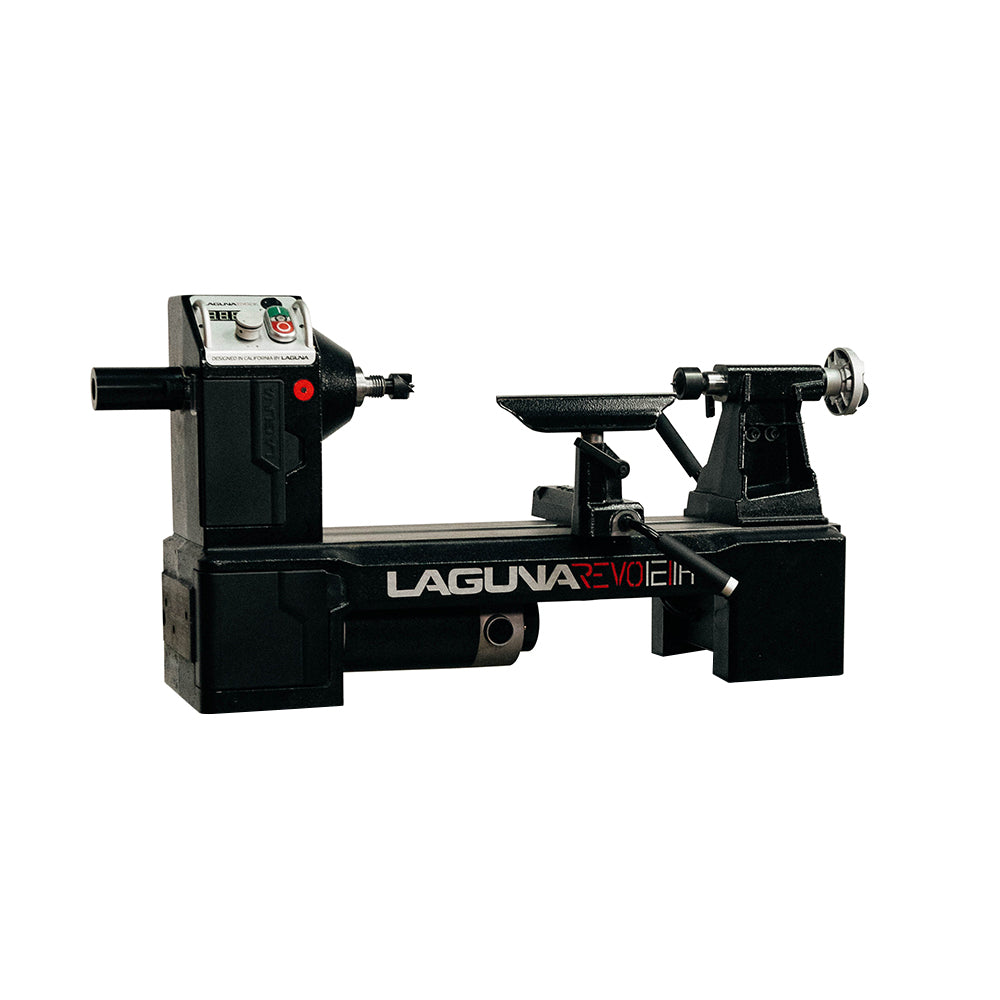

REVO 12|16

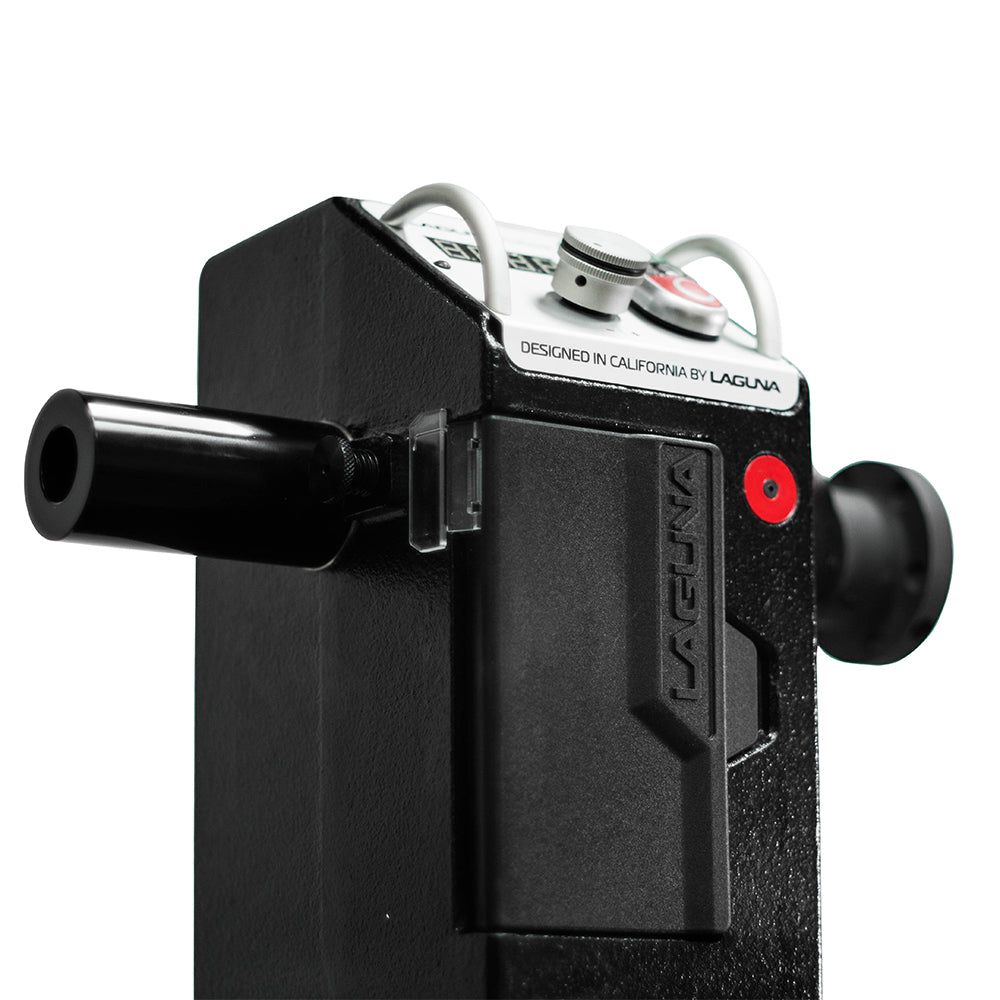

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.

  • Motor: 1 HP DC Permanent Magnet Motor
  • Controller: Pulse Width Modulation (PWM)
  • Electrical Requirements: 110V-1PH-60HZ
  • Recommended Breaker Size: 110V – 15 AMP
  • Speed Range High 650 – 3500 RPM
  • Speed Range Mid 325 – 1750 RPM
  • Speed Range Low 50 – 525 RPM
  • Distance Between Centers 15.5”
  • Swing Over Bed 12-1/2”
  • Swing Over Banjo 9-1/2”
  • Max. Outboard Swing 16”
  • Spindle Bore 3/8”
  • Spindle Taper MT2
  • Spindle Thread 1”x 8 TPI (both ends)
  • Front Bearing 6006LLU
  • Rear Bearing 6005LLU
  • Indexing 24 positions w/ Lock
  • Drive belt Poly-V Belt 6 Grooves
  • Tail stock quill travel 2-1/2”
  • Tail stock taper MT2
  • Bed Length 29.4”
  • Tool Rest Length 6”
  • Tool Rest Post Dia. 1”
  • Faceplate Dia. 3”
  • Certification CSA C/US 256540
  • Floor to bed height 6.7” no pads
  • Floor to Spindle Center 13” no pads
  • Overall Size L29.4” W8.9” H17.4”
  • Shipping Dimensions L35.8” W14.6” H20.5”
  • Net Weight 118 LBS
  • Shipping Weight 125 LBS

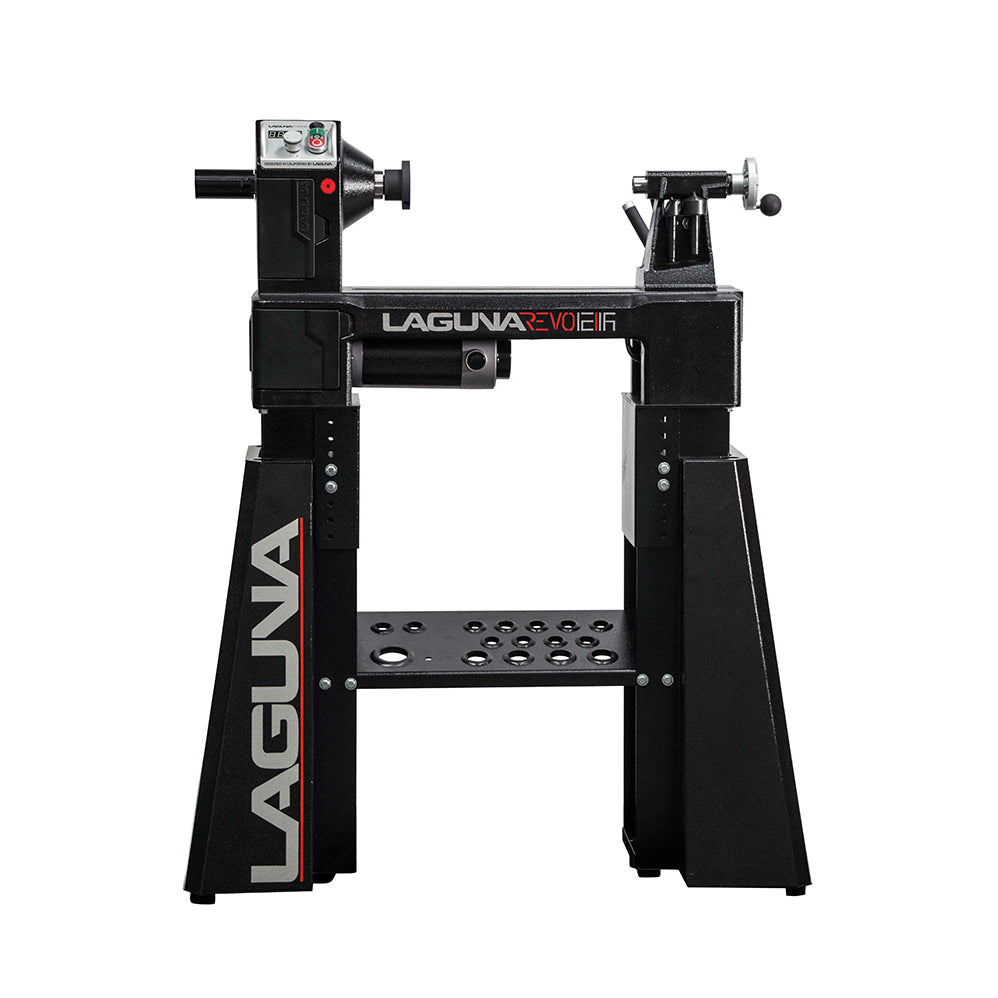

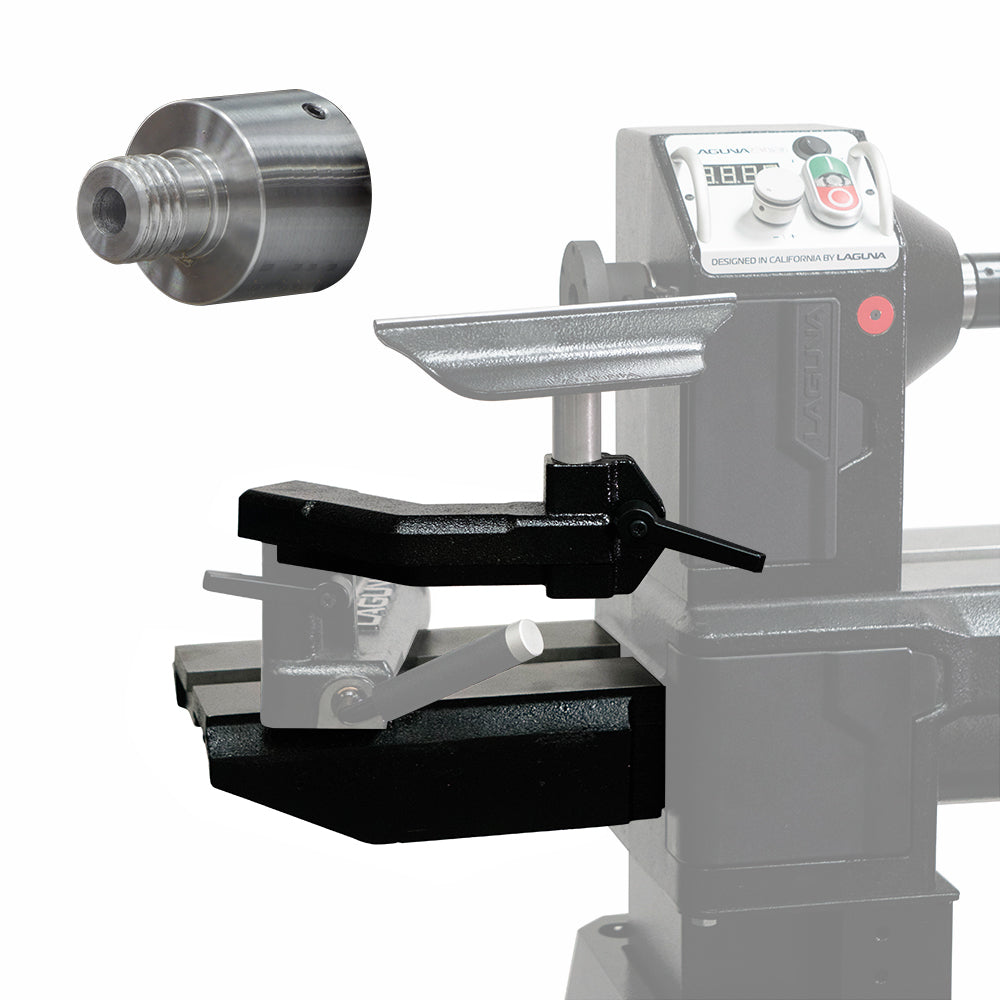

    Purchase is Lathe only,  stand and other accessories sold separately

    Ships directly from Laguna Tools in California or call for pick up at our store location in Gilbert AZ
    Please note shipping is $75
