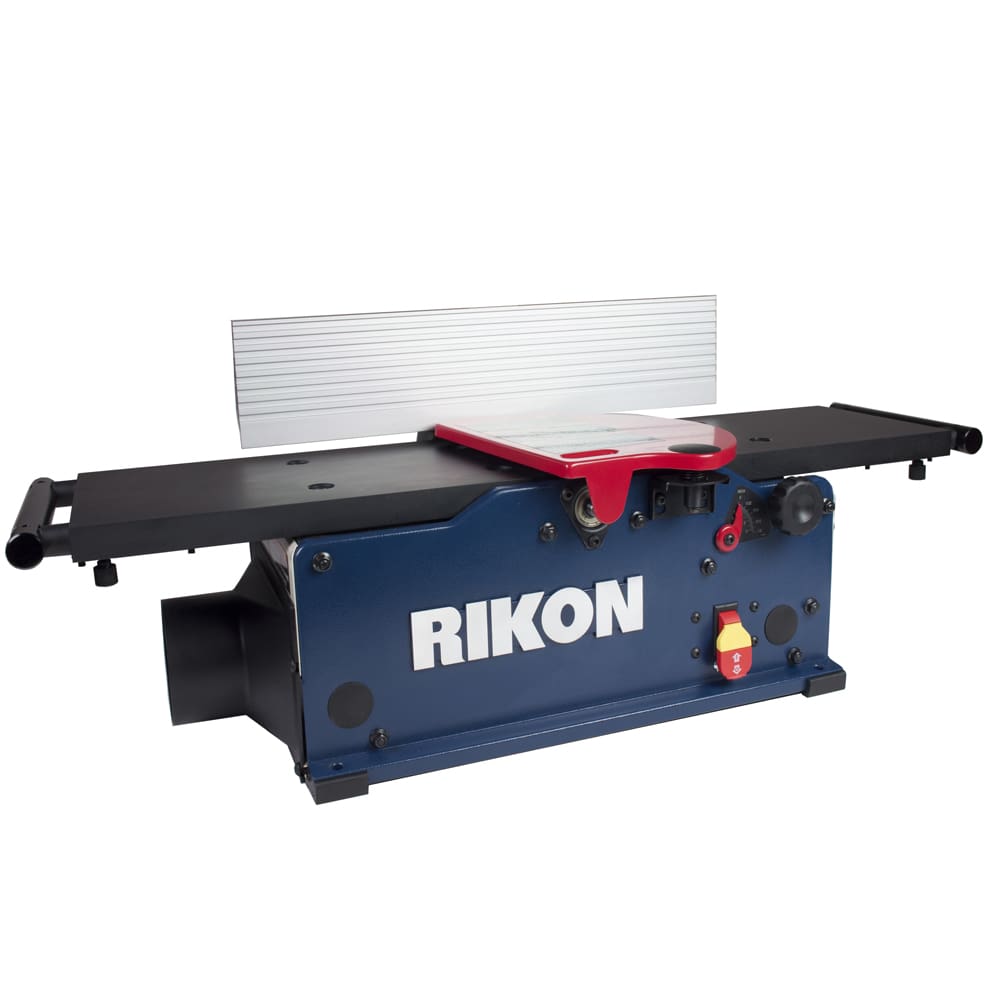

Rikon 20-800HSP 8″ Helical-style Benchtop Jointer

Rikon 20-800HSP 8″ Helical-style Benchtop Jointer

Product Specs

  • Amps: 10
  • Volts: 120V, 60Hz
  • Speed (No Load): 20,000 RPM
  • Fence Size: 19-3/4” x4-3/8”

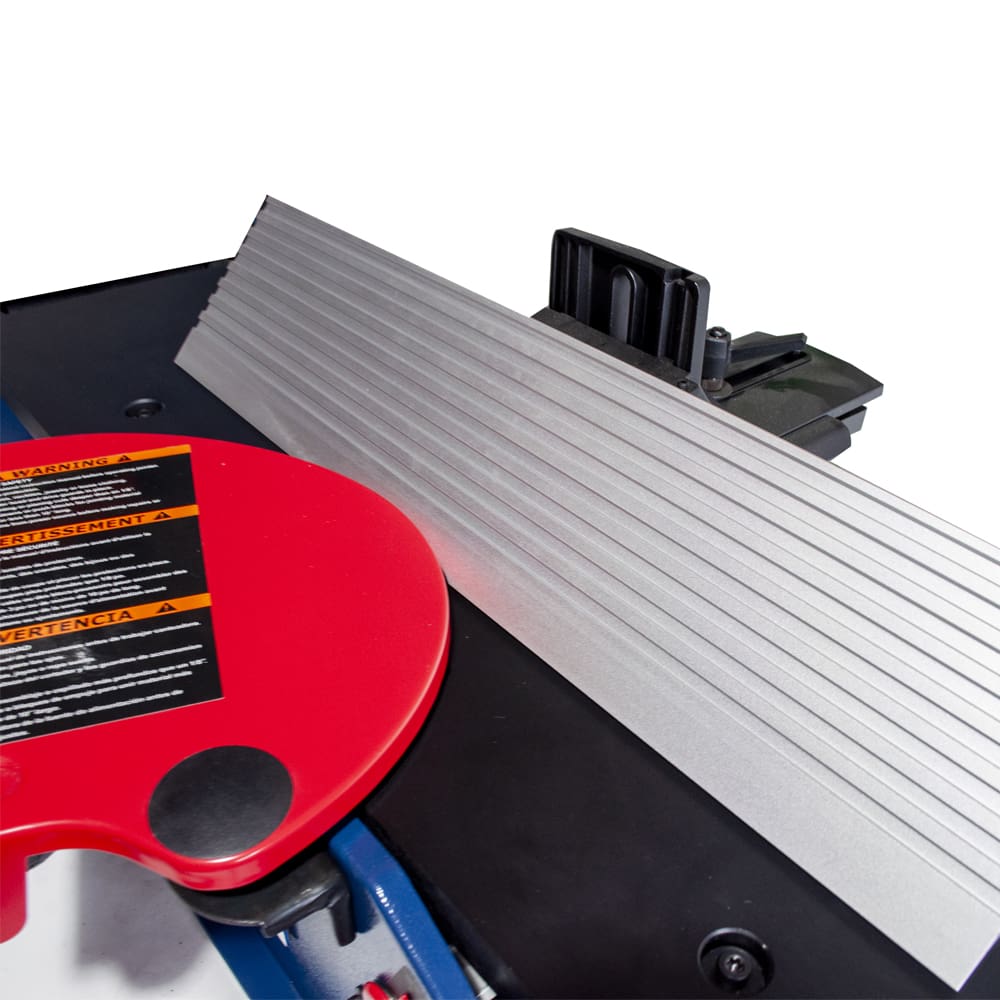

  • Fence Tilt: 90° – 135°
  • Table Size: 30.5” x 8-3/16”
  • Cutterhead Diameter: 2"
  • Cutterhead Speed: 12,000 RPM
  • Carbide Inserts: 16 (2 sided)
  • Carbide Size: 14.2mm x 14.2mm x 2mm
  • Max Depth of Cut: 1/8"
  • Max Cutting Width: 8"
  • Max Length of Stock: 10"
  • Dust Port OD: 4" and 2-1/2"
  • Overall Dimensions: 13" x 18-3/4" x 51-1/2"

Description

  • Powerful 10 AMP Motor
  • Helical Style Cutterhead
  • All Steel Construction
  • High Speed Steel Insert Knives
  • Easy Blade Access
  • Large 30″ x 6-3/16″ Table

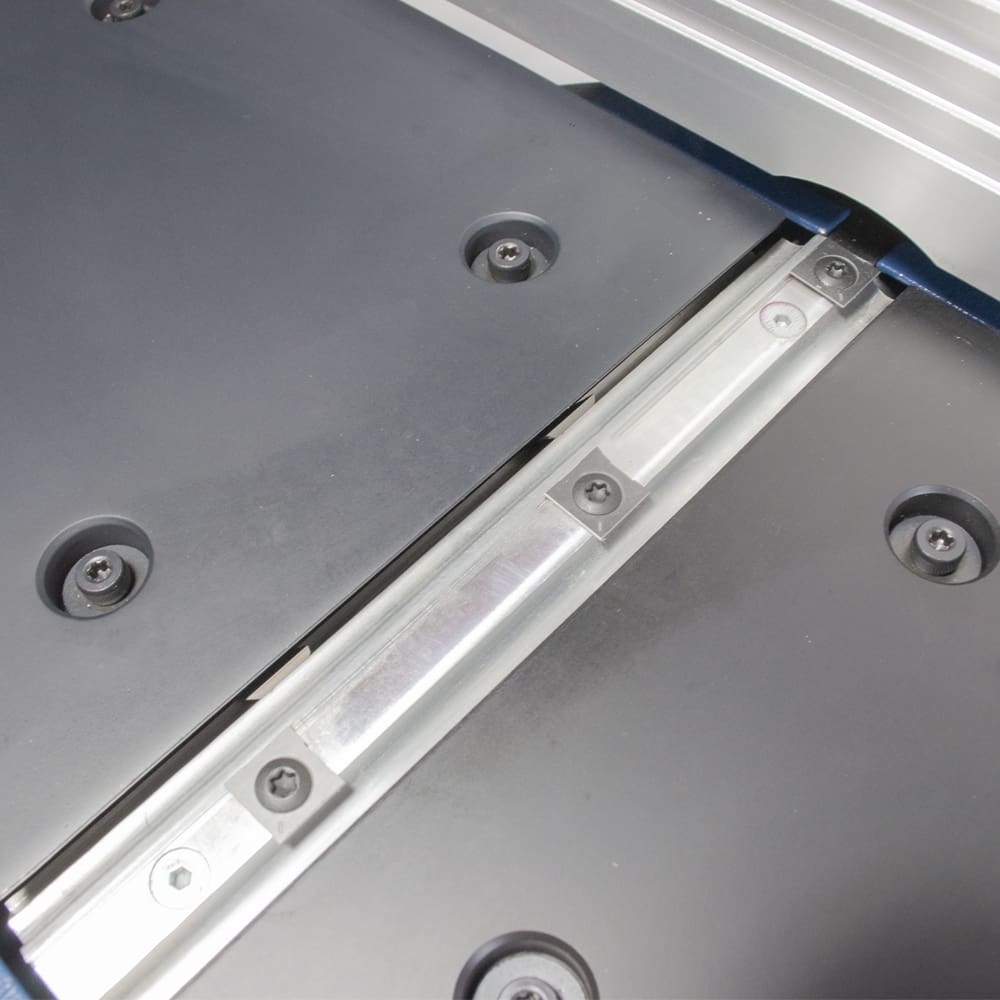

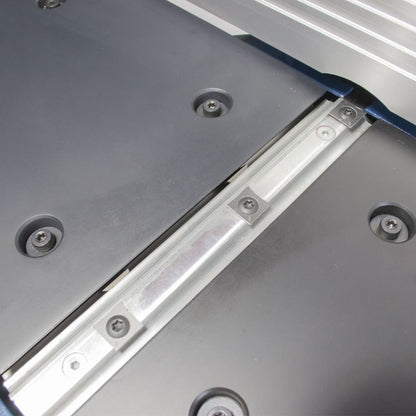

  • 6-row helical-style cutter head with 16 CARBIDE, 2-edge insert cutters for super cutting action
  • Features rigid, all-metal construction, machined aluminum tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 2-1/2” dust port, front safety on/off switch and two push blocks.
  • *Drop Ship based on Rikon stock, please contact us for availability
$699.99 USD
$699.99 USD
Sale Sold Out

8” Benchtop Jointer 20-800HSP has a 6-row helical-style cutter head with 16 CARBIDE, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2″ to 51-1/2″. Features rigid, all-metal construction, machined aluminum

tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 4″ & 2-1/2” dust ports, front safety on/off switch and two push blocks.

*Drop Ship based on Rikon stock, please contact us for availability
