Laguna Planer ShearTec

Laguna Planer ShearTec

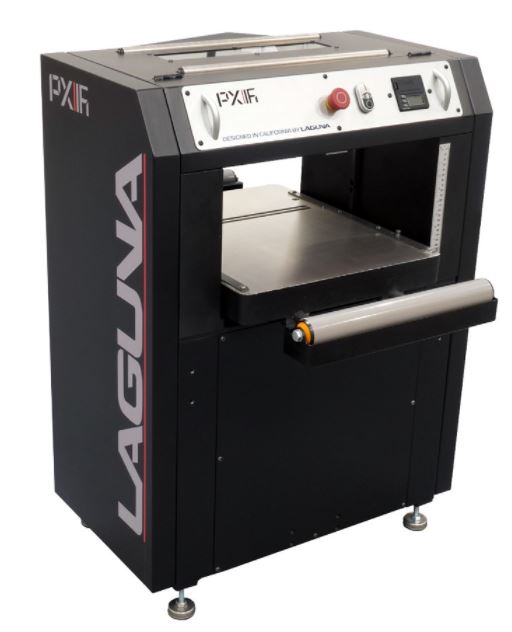

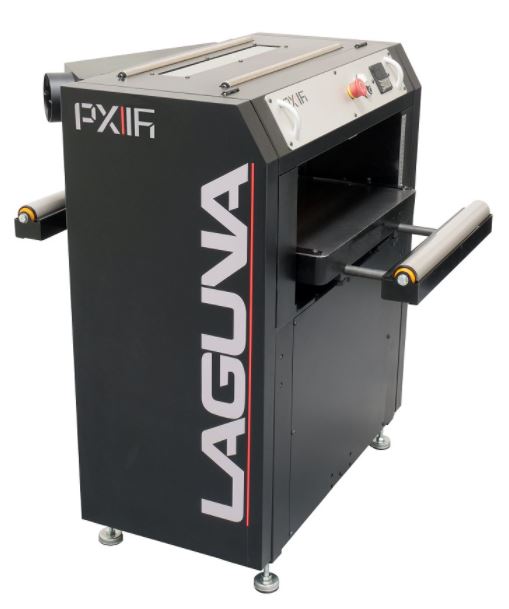

PX16

  • Motor: 220v 5HP 1phase 60hz/23Amp.
  • Bed Size: 16 x 21-1/2"
  • Max. Depth of cut: 1/4"
  • Max. Stock Thickness: 8"
  • Max. Stock Width: 16"
  • Feed Speed: 16 & 28 FPM
  • Dust Port Diameter: 4" LEFT and RIGHT
  • Cutterhead RPM: 5000
  • Dimensions set up approx.: 33"x 36"
  • Top cover clear window
  • Top cover return rollers
  • W/O plug
  • **Drop Ship Based on Laguna Stock**

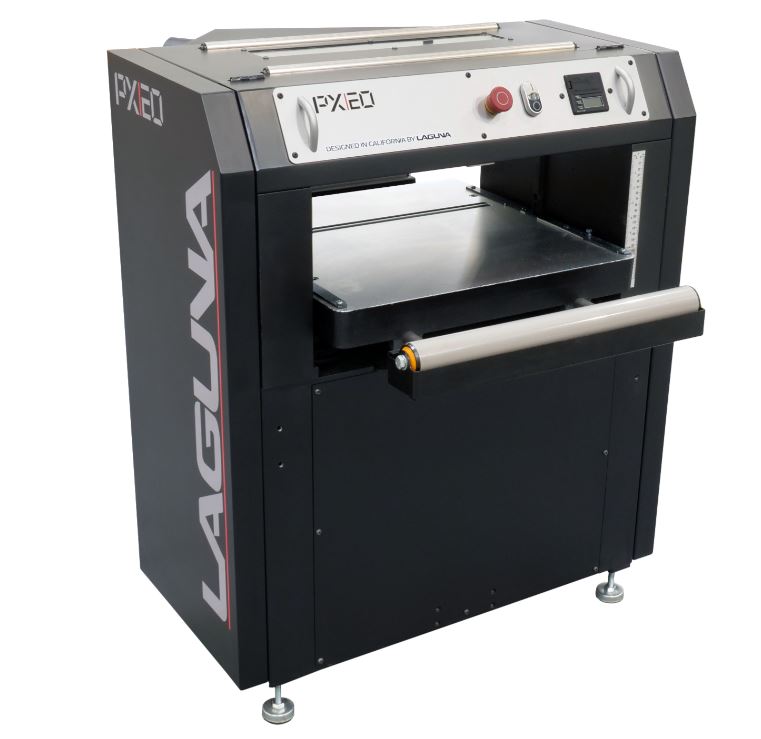

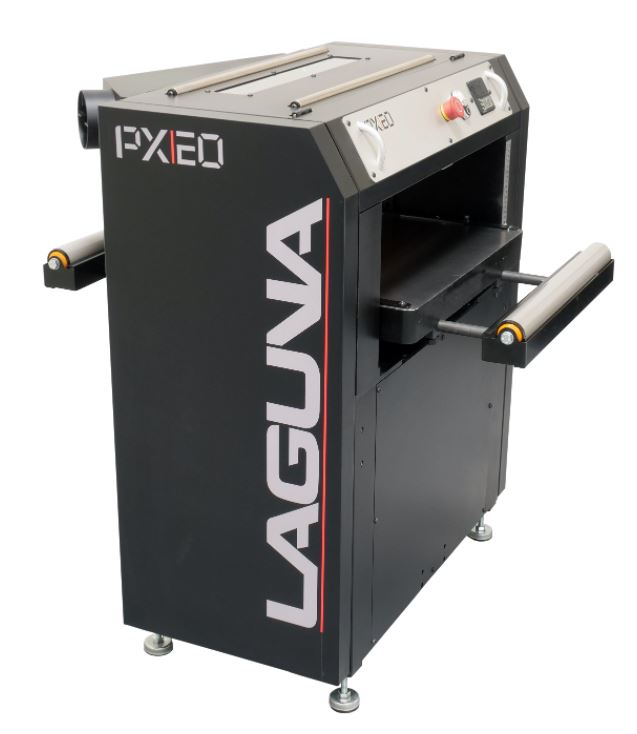

PX|20

  • Motor: 220v 5HP 1phase 60hz/23Amp.
  • Bed Size: 20 x 21-1/2"
  • Max. Depth of cut: 1/4"
  • Max. Stock Thickness: 8"
  • Max. Stock Width: 20"
  • Feed Speed: 16 & 28 FPM
  • Dust Port Diameter: 4" LEFT or RIGHT
  • Cutterhead RPM: 5000
  • Cutterhead Diameter: 3"
  • Dimensions set up approx.: 36"x36"
  • Top cover clear window
  • Top cover return rollers
  • W/O plug
  • **Drop Ship Based on Laguna Stock**

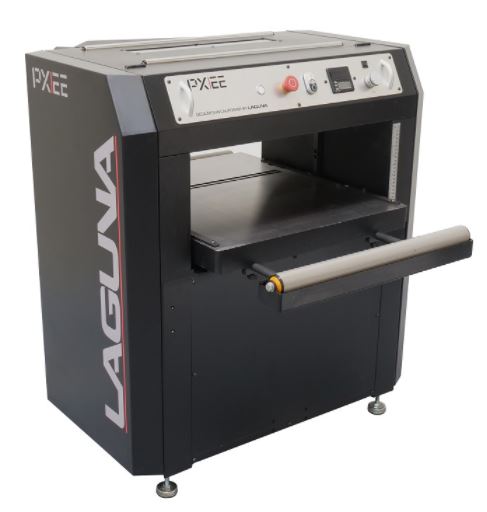

PX|22

  • Motor: 220v 10HP 3phase 60hz /28 Amp.
  • Bed Size: 22 x 28"
  • Max. Depth of cut: 1/4"
  • Max. Stock Thickness: 8"
  • Max. Stock Width: 22"
  • Feed Speed: 10 30 FPM Elec. Vari Spd.
  • Dust Port Diameter: 5" LEFT or RIGHT
  • Cutterhead RPM: 5000
  • Top cover clear window
  • Top cover return rollers
  • Built-in work lamp(LED)
  • Rear side EMG. stop switch
  • W/O plug
  • Dimensions set up approx.: 40"x 46"
  • **Drop Ship Based on Laguna Stock**

ShearTec II Standard Features:

  • Loaded with new ergonomic features to make woodworking safer and more enjoyable.
  • Features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
  • Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
  • Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, it sports a sleek, modern design
  • Improved Dust Collection - The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
  • 4-Post Bed Support - Provides precise and consistent performance with every cut
  • 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods.
  • Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe
Style
$3,999.99 USD
$3,999.99 USD
Sale Sold Out

The Laguna Planer ShearTec offers precise planing for all your woodworking needs. With multiple options to choose from, you can customize the planer to fit your specific needss. With expert craftsmanship and advanced technology, this tool is an essential for any woodworking professional.

**Drop Ship Based on Laguna Stock**

PX|16 ShearTec: II Manual

PX|20 ShearTec: II Planer Manual

PX|22 ShearTec: II 7.5 HP 1 PH &  10 HP 3 PH Manual
